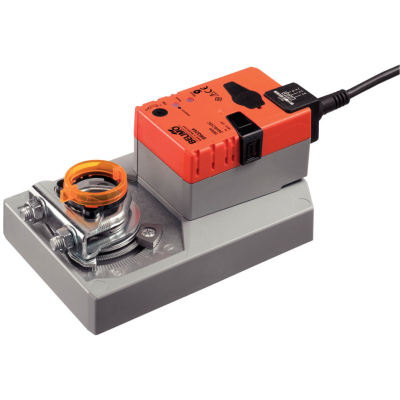

Belimo SMQ24A actuator
EXTENDED
WARRANTY
Description
• VZT damper up to the size of approx. 3.2 m²
• Engine torque 16 Nm
• Nominal voltage AC/DC 24 V
• Open-close control. (not suitable for 3-point control)
• Engine adjustment time 7 s
Data sheet
SMQ24A
- Power supply
- 24V AC/DC
- Actuator type:
- Damper rotatable
- Caliper range
- Ø 12...26.7 mm
- Electrical coverage:
- IP54
- Torque:
- 16 Nm
- Flap size up to approx
- 3,2 m²
- Emergency functions:
- NO
- Type according to conversion speed:
- Very fast
- 90° motor adjustment time
- 7 s
- Control:
- Open / Closed
- SPDT Auxiliary Switch:
- NO
- Direction of rotation:
- Switchable mechanically
- Connection:
- Cable
