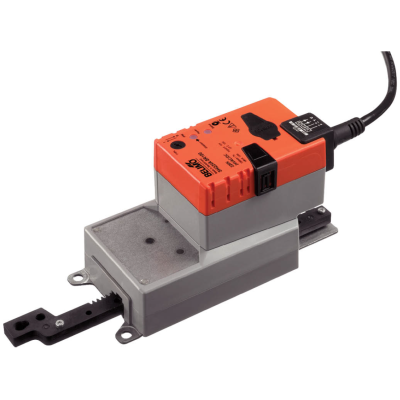

Belimo SHQ24A-SR100 actuator

Modular linear drive for controlling dampers and sliders in technical building equipment

€278.91

€278.91 Tax excluded

€648.62 -57%

i
Výše uplatněné DPH je 0% pro zemi United States.
€278.91 tax excluded
Availability on request
new_releases External warehouse
  • Inquiry for goods

    • Inquiry for goods

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)

    Close or

    EXTENDED

    WARRANTY

    Description

    • Control force 200 N
    • Nominal voltage AC/DC 24 V
    • Control modulating 2...10 V
    • 2...10 V position feedback
    • Stroke length max. 100 mm, adjustable in steps of 20 mm
    • Engine running time 7 s

    Data sheet
    Belimo
    SHQ24A-SR100
    Power supply
    24V AC/DC
    Actuator type:
    Flap linear
    Electrical coverage:
    IP54
    Flap size up to approx
    1.3 m²
    Emergency functions:
    NO
    Type according to conversion speed:
    Very fast
    Control:
    Continuously (0/2...10V)
    SPDT Auxiliary Switch:
    NO
    Connection:
    Cable
    Engine lift force
    200 N
    Engine rebuild time
    7s / 100mm
    Stroke (pinion):
    100 mm
    Direction of movement:
    Selectable with 0/1 switch
    Attachments

    Tech_list_SHQ24A-SR100_en

    Technický list lineárních pohonů SHQ24A-SR100 (anglicky)

    file_download Download (450.84KB)

    Návod_ SHQ24A

    Návod na montáž lineárních pohonů SHQ24A

    file_download Download (589.54KB)
