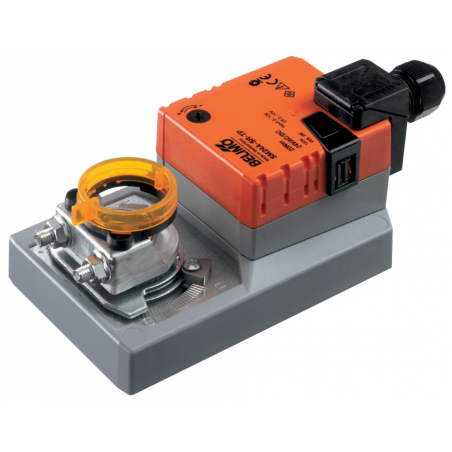

Actuator Belimo SM24A-SR-TP

Rotary valve actuator SM24A-SR-TP

€199.06

€199.06 Tax excluded

€462.94 -57%

i
Výše uplatněné DPH je 0% pro zemi United States.
€199.06 tax excluded
Delivery in 2-3 working days
check In stock
  • Inquiry for goods

    • Inquiry for goods

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)

    Close or

    EXTENDED

    WARRANTY

    Description

    Rotatable damper drive for adjusting air handling dampers in air handling and air conditioning systems of buildings

    Data sheet
    Belimo
    SM24A-SR-TP
    Power supply
    24V AC/DC
    Actuator type:
    Damper rotatable
    Caliper range
    Ø 10...20 mm
    Electrical coverage:
    IP54
    Torque:
    20 Nm
    Flap size up to approx
    4 m²
    Emergency functions:
    NO
    Type according to conversion speed:
    Standard
    90° motor adjustment time
    150 s
    Control:
    Continuously (0/2...10V)
    SPDT Auxiliary Switch:
    NO
    Direction of rotation:
    Switchable mechanically
    Connection:
    Clamps
    Attachments

    Servopohon_SM24A-SR-TP_EN

    Servopohony Belimo - klapkové otočné: SM24A-SR-TP

    file_download Download (358.12KB)

    Installation – SM..A..

    Installation instructions – SM..A..

    file_download Download (567.45KB)

    Montážní návod pohonů -TP

    Montážní návod k servopohonům opatřených svorkami (-TP)

    file_download Download (199.89KB)
