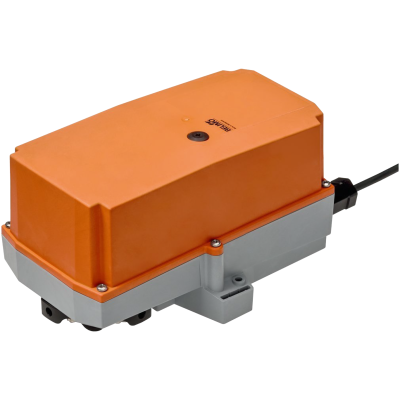

Belimo NM24P-MP servo drive
RobustLine communication damper actuator for controlling dampers in HVAC, similar industrial applications and building services
Description
- HVAC damper up to approx. 2 m²
- Motor torque 10 Nm
- Rated AC/DC voltage 24 V
- Continuous control, communication 2...10 V variable
- Position feedback 2...10 V variable
- Sensor signal conversion
- Communication via Belimo MP-Bus
- Optimum protection against corrosion and chemical influences, UV radiation, humidity and condensation
Data sheet
NM24P-MP
- Power supply
- 24V AC/DC
- Actuator type:
- Damper rotatable
- Caliper range
- Ø 10...20 mm
- Electrical coverage:
- IP66/67 / NEMA 4X for outdoor applications
- Torque:
- 10 Nm
- Flap size up to approx
- 2 m²
- Emergency functions:
- NO
- Type according to conversion speed:
- Robustline for extreme conditions
- 90° motor adjustment time
- 150 s
- Control:
- O/Z, 3-point, continuous DC 0...32 V
- SPDT Auxiliary Switch:
- NO
- Direction of rotation:
- Switchable mechanically
- Connection:
- Cable
- Communication protocols:
- MP-Bus
Optional accessories
