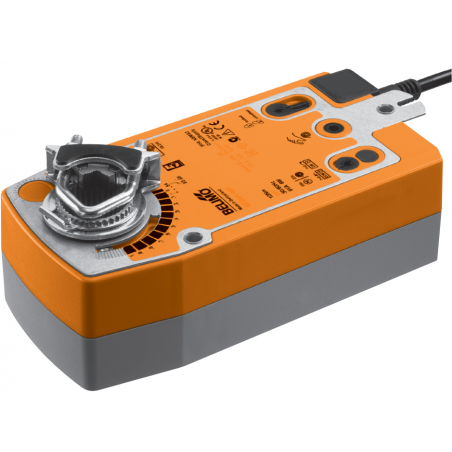

Belimo SF24A-SR actuator
zoom_out_map
chevron_left chevron_right
-57%

Belimo SF24A-SR actuator

Rotary valve actuator with emergency function SF24A-SR

€282.74

€282.74 Tax excluded

€657.54 -57%

i
Výše uplatněné DPH je 0% pro zemi United States.
€282.74 tax excluded
Delivery in 2-3 working days
check In stock
  • Inquiry for goods

    • Inquiry for goods

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)

    Close or

    chat Read user reviews (1) edit Write your review

    EXTENDED

    WARRANTY

    Description

    Rotatable damper drive for adjusting air handling dampers in air handling and air conditioning systems of buildings

    Data sheet
    Belimo
    SF24A-SR
    Power supply
    24V AC/DC
    Actuator type:
    Damper rotatable
    Caliper range
    Ø 10...25.4 mm
    Electrical coverage:
    IP54
    Torque:
    20 Nm
    Flap size up to approx
    4 m²
    Emergency functions:
    YES
    Type according to conversion speed:
    Standard
    90° motor adjustment time
    150 s
    Time to adjust the emergency position 90°
    Up to 20 s
    Control:
    Continuously (0/2...10V)
    SPDT Auxiliary Switch:
    NO
    Direction of rotation:
    Optional by mounting L / R
    Connection:
    Cable
    Attachments

    Montážní návod NF.. /SF..

    Montážní návod k servopohonům řady NF.. /SF..

    file_download Download (769.35KB)

    Servopohon_SF24A-SR

    Servopohony Belimo - klapkové otočné: SF24A-SR

    file_download Download (1.18MB)
