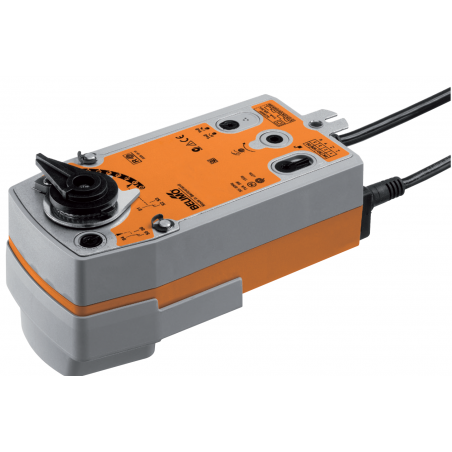

Actuator Belimo NRF 24A-SR-S2
This product is no longer available
Continuous rotary drive with emergency function for ball valves
EXTENDED
WARRANTY
Description
For applications that require movement to the emergency position in the event of a power failure.
• Motor torque 10 Nm
• Nominal voltage AC/DC 24 V
• Continuous control 2...10 V
• 2...10 V position feedback
• No current closed (NC)
• with 2 integrated auxiliary switches
Data sheet
NRF24A-SR-S2
- Power supply
- 24V AC/DC
- Actuator type:
- For cocks, rotatable standard, emergency function
- Electrical coverage:
- IP54
- Torque:
- 10 Nm
- Emergency functions:
- YES
- Type according to conversion speed:
- Standard
- 90° motor adjustment time
- 90 s
- Time to adjust the emergency position 90°
- Up to 20 s
- Control:
- Continuously (0/2...10V)
- SPDT Auxiliary Switch:
- YES - 2 pcs
- Connection:
- Cable
